10 Transom Window Buying Tips for Global Buyers

Choosing a transom window for an international project involves more than comparing photographs and unit prices. Buyers must assess daylight, ventilation, privacy, frame strength, glazing performance, and installation conditions. A beautiful unit may still fail if its dimensions do not match the wall opening.

This guide presents ten practical buying tips for global buyers. It focuses on product specifications, supplier communication, quality records, packaging, shipping, and after-sales support. Ask for exact drawings, section details, material descriptions, and verified test reports. Confirm whether the glass is suitable for the project’s climate and intended location. Coastal air, strong sunlight, heavy rain, and temperature changes can affect material choices.

Small details matter.

Check the opening width, height, reveal depth, hinge position, and fixing method before placing an order. Request physical samples when possible, especially for glass color, powder coating, wood finish, or hardware quality. A reliable supplier should explain tolerances clearly and identify which features are standard or customized. They should also provide realistic production and delivery times, not vague promises.

A perfect checklist does not exist. I have seen buyers focus on the lowest quotation and overlook protective packaging or replacement procedures. That decision can create expensive delays after arrival. Even experienced purchasers may miss differences between nominal and actual measurements. Review every detail with the architect, installer, and supplier. Local building requirements should also be confirmed before production, because accepted designs can vary between markets. These tips are designed to support careful decisions, reduce avoidable risks, and help buyers select a transom window that performs reliably from shipment to installation.

10 Transom Window Buying Tips for Global Buyers
Table of Contents [Hide]
1 Classify Transom Windows by Location, Operation, Frame, and Glazing Type
2 Use NFRC Data: U-Factor, SHGC, VT, and Air-Leakage Ratings
3 Apply 2024 IRC Safety-Glazing and Egress Requirements Before Ordering
4 Compare AAMA/WDMA/CSA 101 Performance Classes and 15% Water Tests
5 Verify CE/UKCA, ASTM/ISO Testing, Warranty, Incoterms, and Landed Cost

Classify Transom Windows by Location, Operation, Frame, and Glazing Type

10 Transom Window Buying Tips for Global Buyers

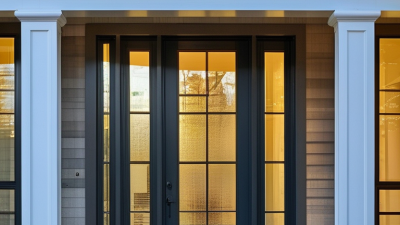

Classify transom windows by location before comparing prices. Above an exterior door, a fixed unit usually adds daylight and preserves security. Above a window, it can extend the visual opening. Interior transoms support borrowed light between rooms, but privacy may suffer. Roofline installations need careful flashing and drainage. Poor placement creates glare, heat gain, or difficult cleaning. It is easy to over-specify.

Next, classify operation. Fixed transoms offer fewer air-leakage risks. Awning or hopper styles provide controlled ventilation during light rain. Tilt-turn hardware can simplify cleaning, but it may increase cost and maintenance. Select the frame by climate and span. Thermally broken aluminum suits large openings. Vinyl and composite frames often reduce thermal bridging. Wood offers warmth, yet it needs disciplined moisture protection.

Glazing deserves measurable attention. Single glazing may suit mild interior applications, while double or triple glazing performs better in exposed climates. Low-emissivity coatings reduce radiant heat transfer. Laminated glass improves sound control and safety; tempered glass handles impact risks more safely.

The U.S. Department of Energy reports that windows can account for about 25% of residential heating and cooling energy use.

Check the NFRC label for U-factor and solar heat gain coefficient, then compare values for the actual climate. A low U-factor is not automatically best everywhere. In hot regions, lower SHGC may matter more. Verify local code requirements, wind loads, egress rules, and installer tolerances before ordering. My classification was too simple at first. Site conditions changed the answer.

Use NFRC Data: U-Factor, SHGC, VT, and Air-Leakage Ratings

When buying a transom window, treat the NFRC label as performance evidence, not decoration. In project reviews, I compare each rating with the room’s orientation, climate, and ventilation needs. The U-factor shows how quickly heat passes through the window. Lower values generally improve insulation in cold conditions. A number alone cannot predict comfort.

SHGC indicates how much solar heat enters through the glass. Higher SHGC may benefit a shaded, north-facing room in a cool region. Lower SHGC can reduce overheating beside strong afternoon sun. VT, or visible transmittance, measures daylight transmission. A bright hallway may need higher VT, but maximum brightness is not always practical. Glare is real. Check furniture placement.

The air-leakage rating measures how much air passes through the window assembly under test pressure. Lower leakage usually supports better comfort and energy performance. This matters around narrow transoms, where sealing gaps can be difficult after installation. Global buyers should confirm the test unit, label date, and local compliance requirements. NFRC values may not match every regional rating system, so compare equivalent methods carefully. I once chose a lower U-factor without checking SHGC, and the room overheated. That mistake changed my checklist.

Transom Window NFRC Metrics: Representative Comparison

Representative specification values for comparing common insulated transom window configurations. Lower U-Factor and Air Leakage indicate better thermal efficiency and tighter performance; SHGC and VT depend on climate, daylight, and solar-control requirements.

Configuration U-Factor
Btu/h·ft²·°F		 SHGC VT Air Leakage
cfm/ft²
Double-pane low-e insulated glass 0.30 0.40 0.55 0.20
Triple-pane low-e insulated glass 0.15 0.35 0.60 0.10

Chart values are indexed to practical comparison ranges so four NFRC metrics can be viewed together; they are not an NFRC composite score. Always confirm the final product label, climate suitability, and test results before purchasing.

Apply 2024 IRC Safety-Glazing and Egress Requirements Before Ordering

10 Transom Window Buying Tips for Global Buyers

Apply 2024 IRC Safety-Glazing and Egress Requirements Before Ordering

A transom window can brighten a hallway, but its location may trigger safety-glazing rules. Under the 2024 International Residential Code, glazing in hazardous locations generally requires safety glazing. Check panels near doors, walking surfaces, stairs, and wet areas. The bottom edge matters. A low panel beside a door can create an impact hazard, even when it looks decorative. Confirm whether the glass carries a permanent safety-glazing mark, such as tempered or laminated glass identification.

Egress needs a separate review. A transom above a bedroom window usually cannot replace a compliant emergency escape and rescue opening. The room still needs an opening that meets local requirements for clear width, clear height, opening area, and sill height. Measure the clear opening, not the frame size. Small differences matter. Many ordering errors begin with attractive drawings and incomplete measurements.

The IRC is a model code, not automatic law everywhere. U.S. states, cities, and authorities may adopt different editions or amendments. Global buyers should send elevation drawings, glass specifications, and room use details to the local building official or qualified designer. Ask for written confirmation before production. I would also recheck the sill height after flooring is selected; finish materials can quietly reduce clearance. Never rely on a supplier’s standard size alone. An overlooked transom detail can delay approval, force replacement, or weaken occupant protection.

Compare AAMA/WDMA/CSA 101 Performance Classes and 15% Water Tests

For global transom window buyers, performance classes matter more than attractive profiles. AAMA/WDMA/CSA 101/I.S.2/A440 identifies R, LC, CW, and AW classes. R suits residential exposure. LC supports light commercial use. CW and AW address higher commercial demands. These classes are not interchangeable. A Canadian project may also require CSA-based documentation and local code review.

The water test uses 15% of the window’s design pressure, with a minimum pressure of 140 Pa, under AAMA/WDMA/CSA 101/I.S.2/A440-17. This test checks leakage through joints, corners, and hardware zones. It does not prove performance during every storm. Wind-driven rain can expose weak installation details. The U.S. Department of Energy estimates that windows can represent about 25% of residential heating and cooling energy use. Poor water control can also damage insulation and interior finishes. Sources: AAMA/WDMA/CSA 101/I.S.2/A440-17; U.S. DOE Energy Saver, 2024.

Tip: Ask for the complete test report, not only a performance-class label. Confirm design pressure, water pressure, specimen size, drainage method, and installation conditions. Check whether the tested transom matches your actual frame depth. Small differences matter. I have seen buyers compare labels while missing the sill design. That mistake deserves more attention.

10 Transom Window Buying Tips for Global Buyers - Compare AAMA/WDMA/CSA 101 Performance Classes and 15% Water Tests

No. Buying Dimension What to Check Technical Reference or Benchmark Practical Guidance for Global Buyers
1 Confirm the Applicable Standard Request confirmation that the transom window is tested and classified under AAMA/WDMA/CSA 101/I.S.2/A440, where this standard is accepted for the project. The harmonized North American fenestration standard evaluates air leakage, water penetration, operating force, uniform load, and related performance requirements. Do not treat a general compliance statement as a test result. Ask for the applicable edition, product type, tested size, configuration, and complete laboratory report.
2 Select the Correct Performance Class Compare the intended application with the NAFS performance classes: R, LC, CW, or AW. R: commonly used for residential applications;
LC: light commercial applications;
CW: commercial applications with higher performance needs;
AW: architectural applications with the highest class requirements. 		The class is not determined by appearance alone. Select it according to building height, exposure, occupancy, window size, weather conditions, and local code requirements.
3 Compare Design Pressure Check the product performance grade, expressed in pounds per square foot (psf), and compare it with the project design pressure. Typical NAFS gateway design pressures are approximately:
R: 15 psf (0.72 kPa), LC: 25 psf (1.20 kPa), CW: 30 psf (1.44 kPa), and AW: 40 psf (1.92 kPa). 		These are class gateway values, not a substitute for engineering calculations. Confirm the required design pressure from the project wind-load report and local building code.
4 Understand the 15% Water Test Verify the water penetration test pressure and whether it is calculated as approximately 15% of the stated design pressure. For common gateway values, a 15% calculation gives approximately:
15 psf → 2.25 psf (108 Pa), 25 psf → 3.75 psf (180 Pa), 30 psf → 4.50 psf (216 Pa), and 40 psf → 6.00 psf (287 Pa). 		The exact test pressure must be confirmed against the applicable standard edition, product type, class, and project specification. A water test is not a permanent guarantee against every installation condition.
5 Review Air Leakage Results Request the air leakage rate at the reported test pressure and check the units used in the report. NAFS air leakage testing is commonly reported in L/s·m² at 75 Pa or in cubic feet per minute per square foot at 1.57 psf, depending on the report format and referenced method. Lower air leakage generally improves energy performance and occupant comfort. Make sure the comparison uses the same test pressure, frame size, sash type, and operating configuration.
6 Check Tested Size and Configuration Compare the tested transom dimensions, aspect ratio, mullions, vents, glazing, hardware, and opening direction with the proposed unit. Performance results apply to the tested specimen and permitted product variations. A larger, wider, operable, or differently glazed unit may require separate evaluation. Ask for maximum certified width and height, allowable size combinations, and any restrictions on horizontal or vertical transom installation.
7 Evaluate Glazing and Thermal Performance Compare glass thickness, laminated or insulated glazing, spacer type, low-emissivity coating, U-factor, and solar heat gain coefficient. Thermal values depend on the complete fenestration assembly, including frame, edge spacer, glass, gas fill, and size. U-factor is commonly expressed in Btu/h·ft²·°F or W/m²·K. Use the climate zone and energy code for the destination market. Confirm whether the quoted thermal value applies to the center of glass or the complete window.
8 Verify Structural and Safety Requirements Review uniform-load resistance, glass safety requirements, impact requirements where applicable, and anchorage details. NAFS performance classification does not automatically replace local requirements for safety glazing, wind-borne debris, fire separation, egress, or seismic design. For coastal, hurricane, high-rise, or severe-weather locations, obtain project-specific structural calculations and confirm whether separate impact or cyclic testing is required.
9 Confirm Installation Compatibility Check rough-opening dimensions, frame depth, sill details, flashing, drainage paths, fasteners, shims, sealants, and compatibility with adjacent wall systems. Laboratory performance is based on a defined installation method. Poor perimeter sealing, blocked drainage, or incorrect anchorage can reduce field performance. Request installation instructions in English and the destination-market language when possible. Clarify responsibility for site verification and field water testing.
10 Audit Documentation and Supply Details Review test reports, product drawings, certificates, material declarations, packing requirements, warranty terms, lead time, and replacement-part availability. A credible submittal should identify the product designation, standard edition, performance class, performance grade, test size, laboratory, test date, and tested options. For international shipments, confirm metric and imperial dimensions, customs documentation, moisture protection, crate design, inspection procedures, and the process for handling transit damage.
Important note: Performance classes, gateway pressures, water-test pressures, and code requirements can vary by the applicable edition of AAMA/WDMA/CSA 101/I.S.2/A440, product type, tested configuration, jurisdiction, and project specification. Always verify the final requirement with the project design professional and the applicable local authority.

Verify CE/UKCA, ASTM/ISO Testing, Warranty, Incoterms, and Landed Cost

When buying a transom window across borders, do not treat a compliance logo as proof of complete safety. Ask for the Declaration of Conformity and confirm the exact product scope. CE and UKCA requirements may differ by destination and installation conditions. Check the manufacturer’s test reports, not only a certificate cover page. Confirm the laboratory, test date, window size, glass type, and tested configuration.

ASTM and ISO reports can support quality decisions, but they do not automatically replace local building requirements. Request air leakage, water penetration, structural, thermal, and impact data where relevant. Warranty terms deserve equal attention. Check coverage periods, exclusions, replacement procedures, and whether labor or shipping is included. Get every promise in writing.

A quote should also state the Incoterm and named delivery place. Responsibility for freight, insurance, export clearance, import clearance, duties, and damage risk changes with that choice. A cheap quote can become expensive. Calculate landed cost using the window price, custom crate, freight, insurance, duty, VAT or GST, broker fees, port charges, and final delivery. Measure package dimensions carefully; oversized crates can change the freight class. I once underestimated packaging volume, and the final transport charge exceeded the expected saving. That mistake still influences my purchasing checklist. Verify currency, quotation validity, payment milestones, and delivery estimates before approving the order.
